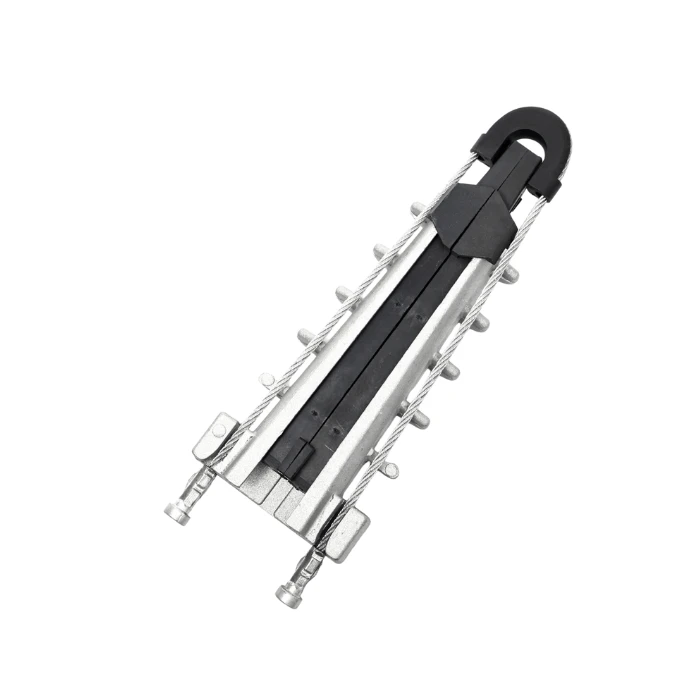

Cov yam ntxwv tseem ceeb
Tus kheej -Xauv Wedge Mechanism
Tightens nyob rau hauv cable nro, tshem tawm qhov xav tau rau lub sij hawm re-tensioning
Zero Cable Damage Installation
Grips txheej sheath yam tsis muaj stripping lossis nthuav tawm cov qauv hauv cable
Huab cua huab cua zoo heev
Ua haujlwm ntseeg tau los ntawm -40℃rau +60℃(-40℃F txog +140℃F)
Sacrificial Breakaway Design
Nyob rau hauv qhov kev puas tsuaj loj heev, lub clamp tsis ua ntej lub cable, tiv thaiv cov kab tawg
Technical Specifications
| Parameter | Specification | Paub meej |
|---|---|---|
| Cable Diameter Range | 2.5mm - 5 hli | 0.10" - 0.20" (puag ncig cables) |
| Tension Capacity | 8 kN (1,800 lbf) | Maximum Allowable Tension (MAT) |
| Ua haujlwm kub | -40℃rau +60 degree | -40℃F rau +140℃F ua haujlwm tas mus li |
| Maximum Span Length | 80m ua | 262 ko taw ntawm cov ntsiab lus thauj tog rau nkoj |
| Ntiv nplhaib khoom | Kub-Dip Galvanized Steel | 5mm txoj kab uas hla, tshem tau tsim |
| Khoom siv lub cev | UV-Stabilized Thermoplastic | Cov xim dub, 25-xyoo UV tiv thaiv kev ntsuas |
| Khoom siv | High -Lub zog Polymer | Tus kheej- kho, serrated tuav nto |
| Kev Qhib Qhov Muag | 15mm yam tsawg kawg nkaus | Tau tshaj tus qauv ncej kho vajtse |
| Qhov hnyav | 125 g yog ' | 4.4 oz (kwv yees) |
| Lub Sijhawm Txhim Kho | <2 minutes | Tsis muaj cov cuab yeej tshwj xeeb xav tau |
| Kev Ua Raws Cai | IEC 61784, ASTM D4066, ASTM D4066 Kev Tswj Xyuas Kev Tswj Xyuas | International fiber optic accessories qauv |
| UV Resistance Rating | 25+ xyoo | Kuaj ib puag ncig tropical |
| Tshuaj tiv thaiv | Acid / Alkali / ntsev tsuag | Marine ib puag ncig haum |
Qauv Xaiv Rooj
| Qauv nab npawb | Cable Diameter | Hom ntawv thov | Xim Code | Qhov hnyav | Pom zoo Span |
|---|---|---|---|---|---|
| DIMI-WTA-2535 | 2.5-3.5 hli | Tso cables, mini ADSS | Dub | 110g | Tsawg dua los yog sib npaug li 50m |
| DIMI-WTA-3545 | 3.5-4.5 hli | Txheem FTTH, Daim duab-8 | Dub | 120g | Tsawg dua los yog sib npaug li 70m |
| DIMI-WTA-4550 | 4.5-5.0 hli | Heavy-duty ADSS, ABC | Dub | 135g | Tsawg dua los yog sib npaug li 80m |
| DIMI-WTA-2550-UV | 2.5-5.0mm (universal) | Txhua hom kab mob | Dub | 125g | Tsawg dua los yog sib npaug li 80m |
Daim ntawv qhia kev thov
Telecommunications Networks
- FTTH (Fiber mus rau Tsev) kawg - mais kev xa tawm
- Nroog fiber ntau optic qaum tes hauj lwm
- Nyob deb nroog broadband expansion tej yaam num
- 5G me me cell backhaul installations
- Campus thiab industrial park txuas
Kev sib txuas lus siv hluav taws xob
- ADSS cable kev teeb tsa raws cov kab hluav taws xob
- Smart grid kev sib txuas lus infrastructure
- Substation - mus rau - substation fiber txuas
- Distribution automation network cables
Cable TV & tshaj tawm
- Hybrid fiber ntau-coax (HFC) network poob
- Daim duab-8 poob cable terminations
- Lub tsev nkag point anchoring
Daim Ntawv Thov Kev Lag Luam & Case Studies
Metro Fiber Expansion - Los Angeles
Qhov project Background
Tus neeg muab kev sib txuas lus Tier-1 yuav tsum tau xa FTTH sai sai thoob plaws 15,000 cov tsev nyob hauv cov nroog loj. Lub phiaj xwm thov kev teeb tsa sai kom ua tau raws li cov cai tswjhwm sijhawm thaum tswj xyuas xoom cable puas tsuaj nyob rau hauv ib puag ncig nyuaj nrog cov kab hluav taws xob overhead thiab txwv cov ncej nkag.
DIMI Solution Implementation
Deployed 8,500 units ntawm DIMI-WTA-3545 wedge nro thauj tog rau nkoj clamps hla 280 txoj kev- mais ntawm fiber ntau drops. Cov neeg ua haujlwm txhim kho tau siv cov cuab yeej -dawb tsim los ua kom tiav 45-50 poob kev teeb tsa hauv ib hnub rau 2 tus neeg pab pawg, piv rau 28-30 tee nrog rau yav dhau los compression-type clamps.
Smart Grid Communication Network - Texas Power District
Qhov project Background
Lub zog hluav taws xob hluav taws xob hauv cheeb tsam niaj hnub tsim kev faib khoom siv hluav taws xob xav tau 450km ntawm ADSS cable installation raws 13.8kV cov kab uas twb muaj lawm. Cov teeb meem ib puag ncig muaj xws li qhov kub thiab txias hloov pauv (-10℃rau +45 degree), UV raug siab, thiab kev ua haujlwm 40 xyoo.
DIMI Solution Implementation
Specified DIMI-WTA-4550 clamps nrog UV+ pob rau 3,200 cov ntsiab lus thauj tog rau nkoj thoob plaws lub network. Clamps tau nruab rau ntawm ob qho tib si steel thiab ntoo ncej siv tus qauv ncej bracket sib dhos. Cov qauv tsim kev rhuav tshem kev txi muab kev nyab xeeb tseem ceeb ua raws li cov qauv siv hluav taws xob.
Rural Broadband Initiative - Roob Cheeb Tsam
Qhov project Background
Tsoom fwv- tau pab nyiaj pab kev sib txuas hauv nroog nyob deb nroog tsom rau cov zej zog tsis muaj kev pabcuam hauv roob nrog cov struts nyuaj, hla mus txog 75m, thiab lub caij ntuj sov kub heev. Kev txhim kho yuav tsum tau txo qis cov neeg tuaj xyuas qhov chaw thiab ua kom cov cuab yeej muaj kev ntseeg siab nyob rau hauv tej thaj chaw deb nrog kev nkag tau yooj yim.
DIMI Solution Implementation
Universal qauv DIMI-WTA-2550-UV xa tawm hla 120 txoj kev-mais ua haujlwm 2,400 thaj chaw. Ib qho qauv tshwj xeeb yooj yim tswj cov khoom lag luam rau cov chaw taws teeb teeb tsa. Kev kho tus kheej wedge tsim haum rau qhov sib txawv ntawm cov kab sib txawv ntawm cov kab sib txawv ntawm cov khoom siv.
Kev Txhim Kho Tsev Kawm Ntawv Hauv Tsev Kawm Qib Siab - University Infrastructure
Qhov project Background
Cov tsev kawm ntawv tshawb fawb loj hloov kev laus tooj liab nrog fiber ntau thoob plaws 850-acre tsev kawm ntawv. Qhov project xav tau kev tsim kho kom zoo nkauj nyob ze cov tuam tsev keeb kwm, kev xa tawm sai thaum lub caij ntuj sov so (60-hnub qhov rais), thiab kev koom ua ke nrog cov khoom siv hluav taws xob uas twb muaj lawm thiab cov khoom txuas hauv tsev.
DIMI Solution Implementation
Sib tov ntawm 1,200 DIMI-WTA-2535 (tej luv luv) thiab 800 DIMI-WTA-3545 (siv ntev dua) units. Dub thermoplastic lub cev khaws cia pom kev sib xws nrog cov txheej txheem uas twb muaj lawm. Kev teeb tsa ceev tau ua kom tiav thaum lub sijhawm kawm tiav yam tsis muaj kev cuam tshuam rau lub caij nplooj zeeg caij nplooj zeeg.
Cov neeg siv khoom pov thawj
David Chen
Network Engineering Manager
Regional Telecom Provider, California
Maria Rodriguez
Tus Thawj Coj Muag Khoom
Kev Koom Tes Hauv Nroog Hauv Nroog, Roob Xeev
James Patterson
Senior Line Engineer
Regional Electric Utility, TX
Daim ntawv qhia kev teeb tsa
Cov cuab yeej xav tau
- Cable tensioning pulley los yog tuaj-nrog
- Digital tension meter (pom zoo)
- Cov hnab looj tes ruaj ntseg thiab tiv thaiv qhov muag
- Ncej bracket los yog mounting hardware
Environmental Checks
- Ambient kub nyob rau hauv -20℃rau +40℃rau installation
- Cable tsis muaj dej khov, noo noo, lossis kis kab mob
- Ncej kho vajtse ruaj ntseg mounted thiab thauj khoom- sim
- Yam tsawg kawg 150mm tshem tawm los ntawm cov kab hluav taws xob khaws cia
1
Kauj Ruam 1: Kev Npaj Cable
Rub cable rau kev ua haujlwm nruj (kwv yees li 30-40% ntawm MAT) siv cov khoom siv tensioning. Txheeb xyuas qhov nro nrog cov ntsuas ntsuas digital. Ntxuav cable nto nyob rau hauv qhov chaw clamping kom tshem tawm cov av, noo noo, los yog cable lubricant residue. Tsis txhob hlais lossis nthuav tawm cov qauv hauv kab.
2
Kauj Ruam 2: Clamp Positioning
Nrog cable nyob rau hauv nro, tso lub clamp lub cev 100-150mm los ntawm lub hom phiaj mounting point. Xyuas kom lub conical qhib ntsib cov kev taw qhia ntawm cable khiav. Lub nplhaib bail yuav tsum dai dawb tsis muaj twist lossis kink.
3
Kauj Ruam 3: Ntxig Ntxig
Qhib lub cev clamp thiab tso lub cable rau hauv qhov chaw nruab nrab. Ntxig ob lub polymer wedges ib txhij los ntawm cov sab nraud, xyuas kom cov hniav ntsej muag sab hauv mus rau cable. Thawb cov wedges kom txog thaum lawv nyem rau hauv qhov chaw khaws cia. Xyuas kom cov wedges tau zaum thiab sib npaug.
4
Kauj ruam 4: Hardware Attachment
Xov lub nplhaib ntawm lub qhov muag ntawm tus ncej bracket los yog nuv txuas taw tes. Rau kev tshem tawm kev teeb tsa, tawm lub nplhaib qhib kom txog thaum qhov chaw zaum kawg tau lees paub. Rau kev teeb tsa mus tas li, kaw lub nplhaib kaw kom tiav.
5
Kauj Ruam 5: Kev Hloov Siab
Maj mam tso qhov nro ntawm cov khoom tuav ib ntus. Raws li cable nro hloov mus rau lub clamp, lub wedge mechanism yuav nws tus kheej - zawm. Saib xyuas cable rau txhua qhov slippage (yuav tsum yog xoom). Tso qhov nro nyob rau hauv 25% increments tshaj 60 vib nas this kom tso cai rau lub rooj zaum.
6
Kauj Ruam 6: Thaum kawg Tensioning
Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium, totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae.
7
Kauj Ruam 7: Kev Ntsuam Xyuas Zoo
Tshuaj xyuas kom zoo sib koom ua ke - ob lub wedges yuav tsum tau muab sib npaug rau hauv lub cev conical. Tshawb xyuas lub nplhaib kom paub tseeb tias muaj kev ntxhov siab lossis deformation. Xyuas kom meej tias tsis pom cable sheath puas los yog compression marks. Cov ntaub ntawv teeb tsa hnub thiab kev nyeem ntawv nrawm rau kev saib xyuas cov ntaub ntawv.
