Technical Specifications
Cov ncauj lus kom ntxaws kev ua haujlwm kom ntseeg tau tias qhov kev ua tau zoo tshaj plaws thiab kev sib raug zoo nrog cov qauv kev lag luam.

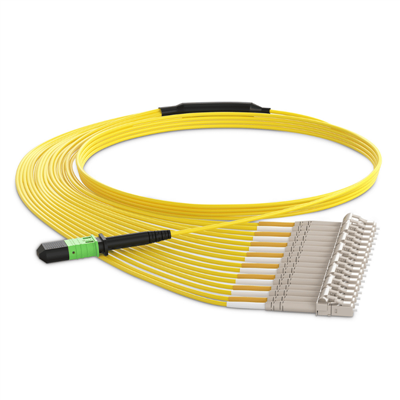

Khoom kos duab
Basic feature
| Connector A |
MPO Poj Niam (12-fiber lossis 8-fiber), nrog pins |

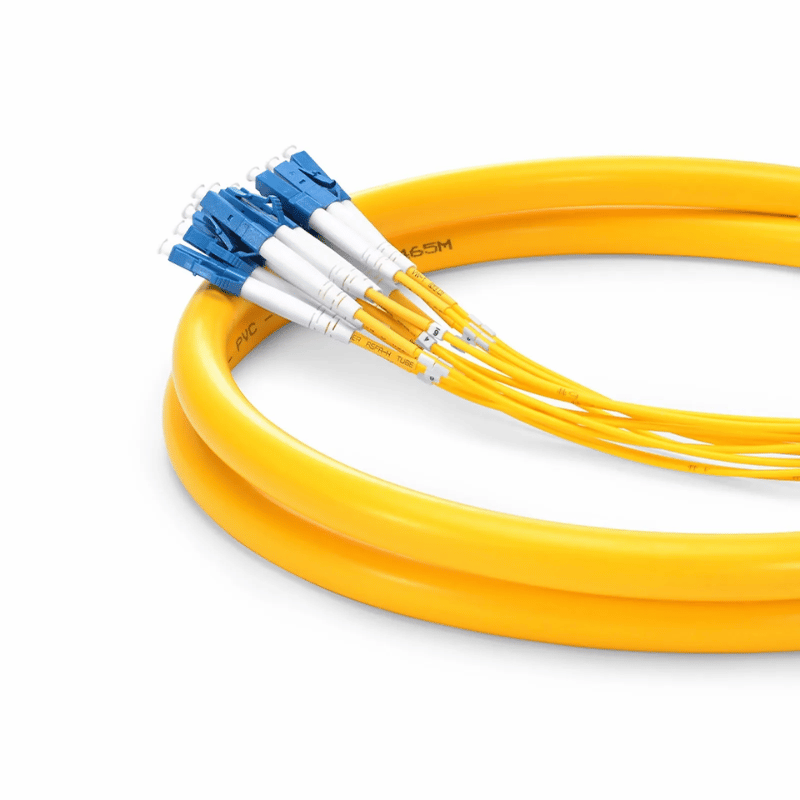

| Connector B | 4 × lossis 6 × LC / UPC Duplex (8 lossis 12 fibers) |
| Hom Fiber | OS2 Single-Mod 9/125µm |
| Fiber suav | 8-fiber (4 × LC Duplex) lossis 12-fiber (6 × LC Duplex) |

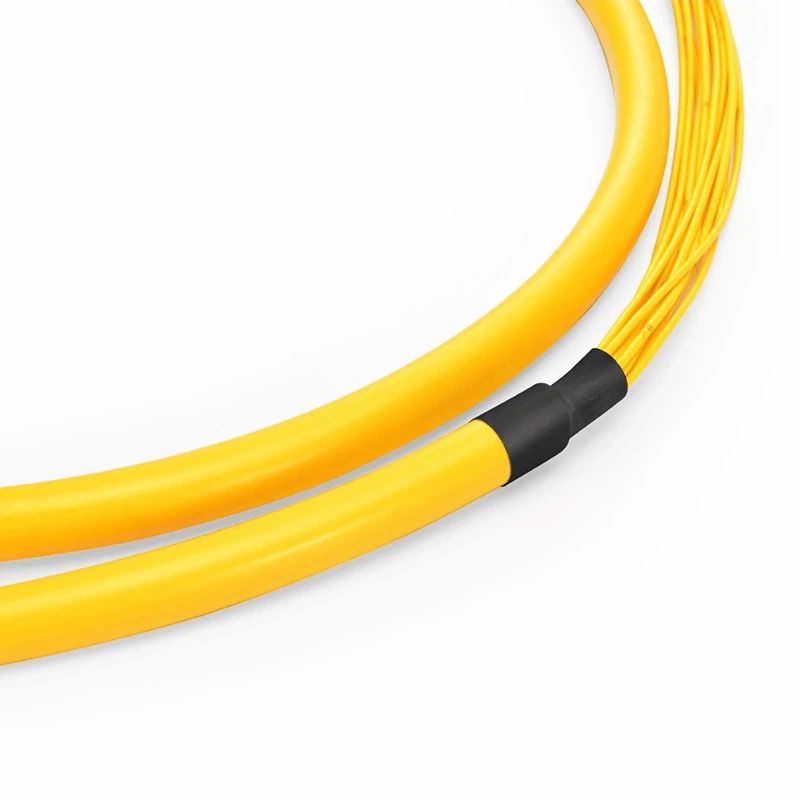

| Kab Kab | Round cable trunk nrog 0.9mm nruj -buffed breakout ceg |
| Main Cable Diameter | 3.0mm (8F) / 3.8mm (12F) |
| Breakout Leg Diameter | 0.9mm ib fiber ntau (900µm nruj tsis) |
| Jacket Rating | LSZH (tus qauv), OFNP, PVC, lossis sab nraum zoov armored xaiv |
| Cable Xim | Daj (OS2 standard), cov xim kev cai muaj |
|
Breakout Length |
0.5m mus rau 3m (Customizable) |
Digital feature
| Insertion Loss (MPO) | Tsawg dua lossis sib npaug rau 0.35 dB (tus qauv) |
| Fiber ntau attenuation (@1310nm) | Tsawg dua los yog sib npaug rau 0.35 dB / km (tus qauv) |
| Insertion Loss (LC) | Tsawg dua lossis sib npaug rau 0.30 dB (tus qauv) |
| Rov Los Loss (UPC) | Ntau dua lossis sib npaug li 50 dB |
| Fiber ntau attenuation (@1310nm) | Tsawg dua los yog sib npaug rau 0.35 dB / km (tus qauv) |
| Fiber ntau attenuation (@1550nm) | Fiber ntau attenuation (@1550nm) |
| Xaus-rau-Xaum Channel Loss |
Tsawg dua lossis sib npaug rau 1.5 dB (ib txwm 5m sib dhos) |
Mechanical Specifications
| Yam tsawg kawg nkaus Khoov Radius (loaded) | 10 × kab |
| Yam tsawg kawg nkaus Khoov Radius (unloaded) | 20 × kab |
| Tensile zog | Ntau tshaj lossis sib npaug rau 600 N (cable), Ntau dua lossis sib npaug rau 90 N (connector) |
| Crush Resistance | Ntau tshaj los yog sib npaug rau 1000 N / 100mm |
| Impact Resistance | Ntau dua lossis sib npaug li 10 J |
| Mating Cycles | Ntau dua lossis sib npaug rau 500 (MPO), Ntau dua lossis sib npaug rau 1000 (LC) |
| Connector Retention | Ntau dua lossis sib npaug li 90 N |
| Cable Jacket Khoom | LSZH, OFNP, PVC, lossis PE (armored) |
| Ua haujlwm kub | -40℃rau +75 degree |
| Cia Kub | -40℃rau +85 degree |
| txheeb ze humidity | 0% txog 100% (tsis yog-condensing) |
| Qhov siab | 0 mus rau 5,000 meters |
| Nplaim ntsuas | UL 94 V-0 (LSZH), OFNP (UL 910) |
| Haus luam yeeb ntom | Tsawg dua lossis sib npaug rau 50 (ASTM E662) |
| Halogen Cov ntsiab lus | Zero (LSZH) |
| Corrosion Resistance | Kev xeem tshuaj ntsev ntsev (ASTM B117) |
Cov yam ntxwv tseem ceeb
Ua ntej-Terminated Plug-thiab-Play Solution
Factory raug txiav thiab sim, tsis muaj splicing lossis polishing yuav tsum tau nyob rau ntawm -qhov chaw, 30-thib ob rack xa tawm uas tshem tawm qhov kev txiav tawm tsis raug thiab txo cov nqi ua haujlwm.
Saj zawg zog Density Conversion Architecture
Single MPO connector fans out to 4 or 6 LC duplex connectors, enabling seamless transition from high-density backbone to legacy equipment while maximizing cabinet space utilization.
Ultra-Low Insertion Loss Guarantee
Tsawg dua lossis sib npaug li 0.35dB rau ib qho kev sib txuas, Tsawg dua lossis sib npaug rau 1.5dB kawg-rau-kawg channel poob, kom ntseeg tau 40G / 100G ntev- kis tau tus mob nyob deb nrog cov peev nyiaj txuas txaus.
Factory-Qib Kev Tshuaj Xyuas Zoo
3D interferometer endface soj ntsuam, bidirectional IL / RL kuaj, thiab fiber ntau txuas ntxiv pov thawj; txhua cable ships nrog serialized xeem cov ntaub ntawv kom tiav traceability.
Ntau -Scenario Jacket Options
LSZH ua tau raws li qhov yuav tsum tau muaj kev ruaj ntseg hluav taws kub rau cov khoom siv chav tsev, OFNP haum rau plenum qhov chaw, sab nraum zoov armored version txhawb inter- tsev kawm ntawv cabling.
Modular Upgrade Txoj Kev
Txhawb nqa evolution du ntawm 10G rau 40G rau 100G tes hauj lwm; ib leeg 12-fiber cable tuaj yeem hloov kho tau yooj yim rau 3 × 40G lossis 1 × 100G daim ntawv thov yam tsis muaj kev hloov pauv.
Daim ntawv thov Scenario
Data Center Server Connectivity
Kev sib txuas ncaj qha los ntawm MPO-raws li cov txheej txheem cabling trunk panels rau cov khoom qub qub lossis cov khoom siv khaws cia nrog LC interfaces, tshem tawm qhov xav tau rau nruab nrab thaj vaj huam sib luag thiab txo qis kev nkag mus txog li 0.5dB ib qhov txuas.
01
Hloov - mus rau - Cov Khoom Siv Hluav Taws Xob
Sab saum toj - ntawm - khib lossis kawg- ntawm - kab hloov pauv nrog MPO uplink ports txuas rau ntau 10G SFP + cov khoom siv los ntawm ib tus neeg LC chaw nres nkoj, ua kom siv qhov chaw nres nkoj ceev tshaj plaws thaum tswj cov khoom siv sib txuas tau yooj yim.
02
Kev tsiv teb tsaws ntawm Duplex mus rau MPO Infrastructure
Muab cov kev hloov kho txuas ntxiv txuas ntxiv ua rau LC uas twb muaj lawm - tau nruab cov cuab yeej siv los cuam tshuam nrog cov tshiab siab - MPO qaum qaum cabling yam tsis muaj forklift hloov cov khoom siv kawg.
03
Daim ntawv thov kev ntsuas thiab ntsuas
Cov xwm txheej kuaj thiab hauv network qhov twg MPO xeem cov hlua yuav tsum tau cuam tshuam nrog LC-cov khoom siv kuaj, lub sijhawm kho qhov muag-domain reflectometers (OTDRs), lossis cov ntawv xeem poob.
04
Modular Data Center Pods
Pre-cabled solution for containerized or modular data center deployments where space constraints demand high-density trunk cabling combined with rapid equipment connection capabilities.
05
Daim ntawv thov kev ntsuas thiab ntsuas
Tailor-ua cov kev daws teeb meem kom tau raws li koj cov kev xav tau tshwj xeeb hauv network.
Length Configuration
Lub cev ntev ntawm 1m mus rau 100m hauv 0.5m increments; breakout fanout seem ntawm 0.5m mus rau 3m; asymmetric ceg ntev muaj.
Fiber hom xaiv
OS2 tib- hom (tus qauv rau ntev- ncav cuag daim ntawv thov), OM3 50/125µm multimode, OM4 50/125µm multimode, OM5 wideband multimode.
Fiber suav Options
8-fiber (4 × LC duplex), 12-fiber (6 × LC duplex), 24-fiber (12 × LC duplex), los yog kev cai fiber ntau suav rau cov ntawv tshwj xeeb high-density.
Connector Variations
MPO poj niam nrog pins (tus qauv), MPO txiv neej tsis muaj pins, angled MPO connectors; LC / UPC (tus qauv) lossis LC / APC rau kev txhim kho rov qab poob.
Hom Polarity
Txoj Kev A (tus yuam sij- mus txog qhov tseem ceeb- nqes flip), Txoj Kev B (tus yuam sij- mus txog qhov tseem ceeb- nce ncaj- dhau, qauv), Txoj Kev C (pairs flipped configuration).
Jacket Ratings
LSZH (default), OFNP/plenum- ntsuas, PVC, OFNR riser- ntsuas, sab nraum zoov- ntsuas nrog ob npaug - tsho tiv thaiv armored lossis gel- ua tiav kev tsim kho.
Xim Coding
Standard: Daj (OS2/single-mode), Aqua (OM3/OM4), Txiv qaub (OM5); kev cai xim muaj rau kev txheeb xyuas lub network.
Kev Taw Qhia & Kev Sau Npe
Kev cai laser- cim cov ntawv cim rau ntawm cov khoom sib txuas thiab cov tsho cable nrog cov khoom vaj khoom tsev, tus lej lej, barcode lossis QR code cim npe.
Txhim kho kev sim
Kev ntsuas kub ntawm kev caij tsheb kauj vab txuas ntxiv, kev sim ntsuas kev ntxhov siab ntxiv, cov txheej txheem - ntawv pov thawj tshwj xeeb, ntawm - qhov kev lees paub qhov chaw.
